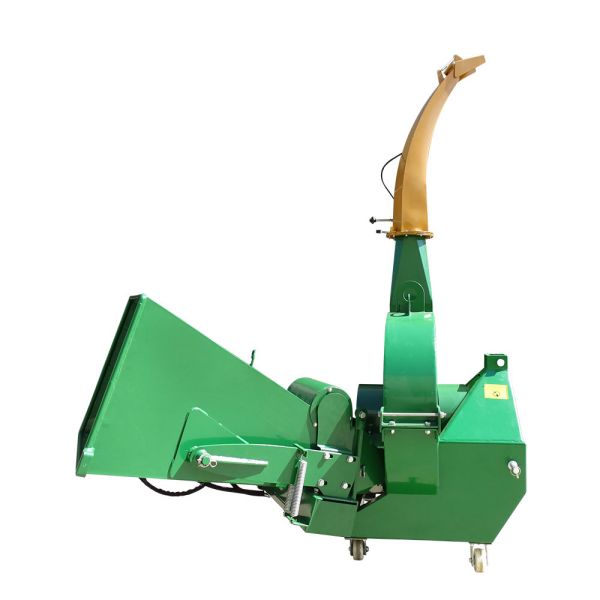

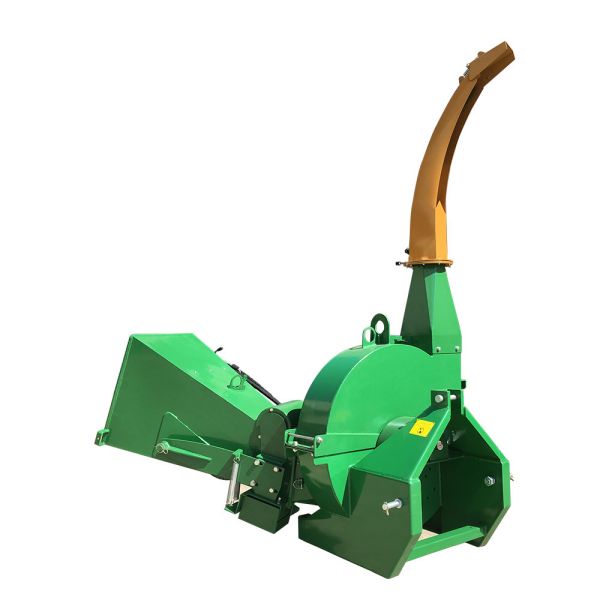

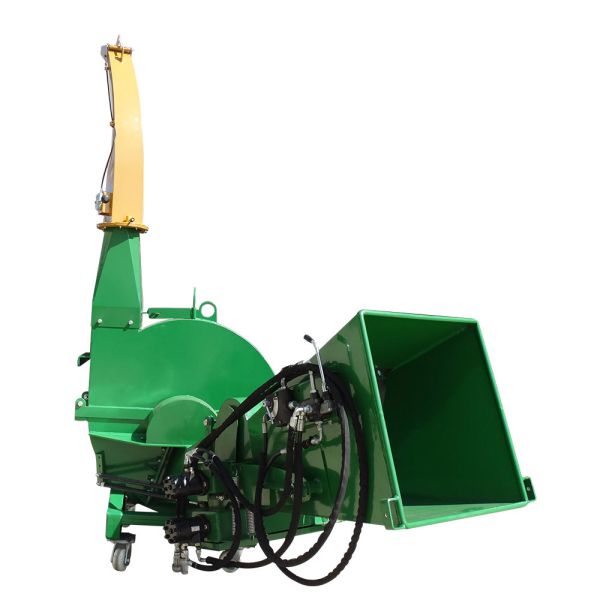

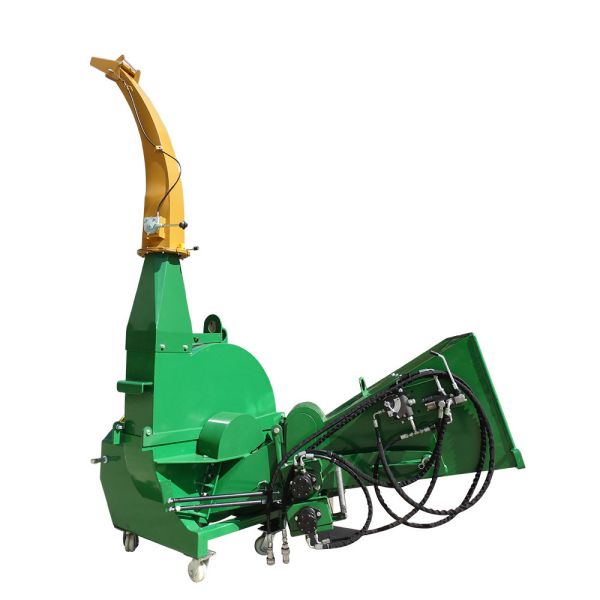

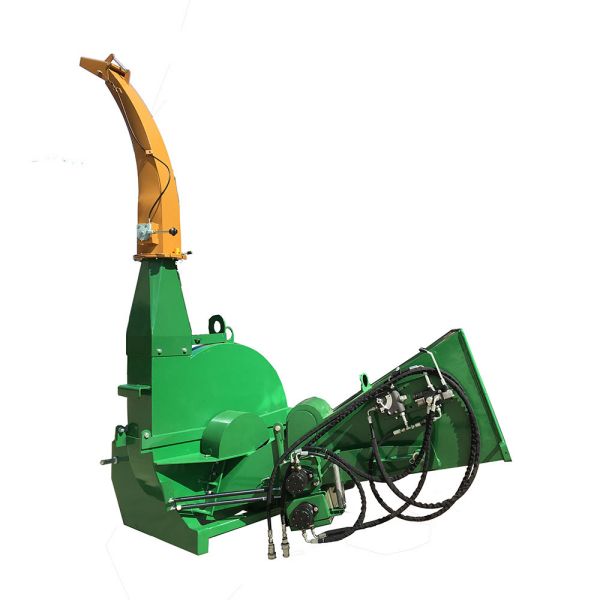

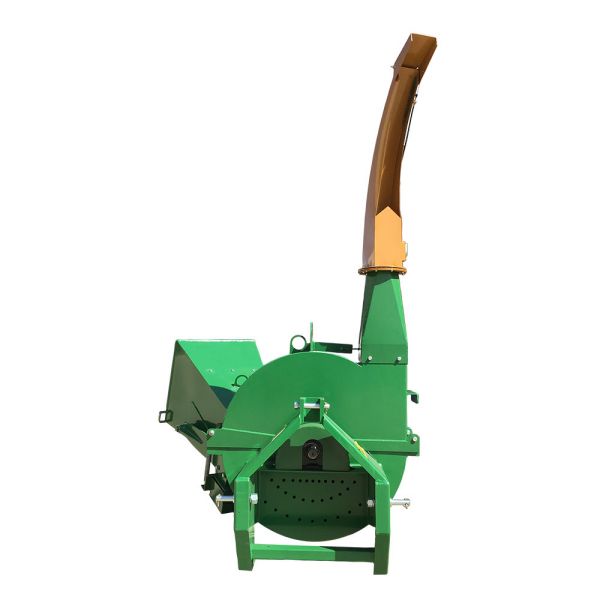

Wood ChipperAGT-BX52G

Features:

1. BX wood shredders are available in three categories with and without hydraulic feeding system.

2. BX52G is a powerful and robust but easy to handle wood chipper for wood diameter of up to 5inch.

3. The BX52G wood shredder comes with a free PTO shaft. To get maximum performance your wood shredder, your tractor should have at least 30HP and a PTO shaft speed of 540 RPM.

Description:

1.Heavy duty rotor and replaceable rotor shaft: The durable rotor is 143 lbs and 2D/3D inch thick. All of our chipper rotors are precisely electrically balanced. The direct PTO drive system turns the well-balanced 143 lbs rotor inside the wood chipper. The rotor shaft is separately replaceable. The rotor is directly driven by the PTO shaft which is included in the shipmentA8-tooling-steel knife: It's with four 8.2 inch length knives from hardened A8-tooling-steel. The rotor knife is reversible.

2.Perfect chipping performance: The fast turning knife rotor cuts the wood about 35 times per second, which pulls in the material. The newly designed counter knife setting of the wood shredder allows a precise 0 - 0.2 inch distance setting to the rotor knives and creates shredded material from 0.7 to 1.5 inch in size.

3.A good design is aerodynamic: The high rotor speed and the specially designed rotor winglets create an air suction inside the wood shredder, which throws out the shredded material and makes wood jams virtually impossible.

4.Branch beaker: The rotor housing is equipped with replaceable branch breakers that will reliably reduce the size of very thin branches with less than 5mm diameter.

5.Compatible for 1000RPM PTO: For difficult materials like bamboo, willow or pine tree branches you can even use 1000 rpm PTO speed for a limited time as all of our machines use well-balanced rotors in the wood chipper that can be run at this speed.

6.Efficient shredding capacity: The wood chipper discharge funnel is located in 72 inch height and can be turned by 230° with an adjustable throwing angle. The shredded material can be thrown up to 6 meters in distance, making it easy to fill trailers or containers. The shredding capacity is 6 - 7 m3/h depending on the type of wood.

7.Easy maintenance: The BX52G is designed for easy maintenance. The rotor cover can be opened by removing only one screw to get access to the knives.

8.Folding feeding chute: For easy transportation and convenient storage, the input chute can be lifted up and secured by a pin.

Specifications:

1.Dimensions (HxWxD): 54x58x72inch

2.Total weight: 452lbs

3.3-point hitch: CAT I

4.PTO shaft RPM: 540 RPM (1000 temp possible)

5.Length of PTO shaft: 27inch

6.Drive system: direct drive

7.Tractor engine power recommended: 18-50hp / 13-37kw

8.Power needed for max. performance: 30-40hp

9.Rotor diameter: 23inch

10.Rotor width: 0.63inch + winglets

11.Rotor weight: 143lbs
