Car Lift-B1000
Car Lift-B1000
Note:
1.Red and blue machines are shipped randomly
2.Recommend to use manufacturer supplied anchor bolts to fix the lift

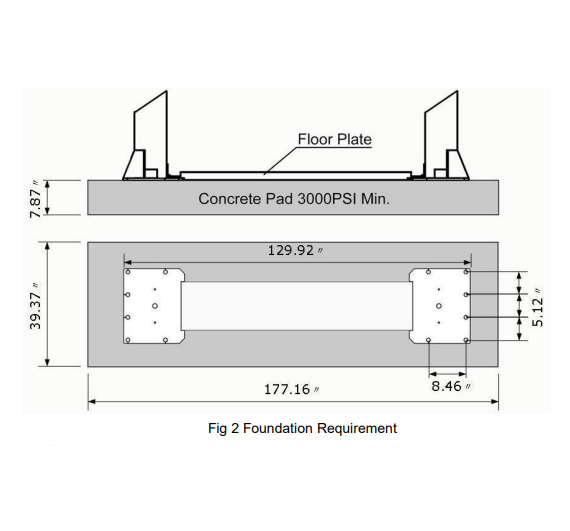

3.The lift must be installed on a level concrete foundation with a minimum concrete thicknessof 6” (7.87” is recommended) and a strength of 3000 psi or more.
Specifications
Packed with boxes A and B
|
Box A |
110’’ x 22’’ x 30’’, 1190 lbs |
|
Box B |
31.5’’ x 10’’ x 14’’, 63 lbs |
Install Manual
Owner's Manual: Click Here
Details
1. 2 of-Stage arms and 2 of 3-Stage arms
2. Whole-Plate structure reinforced carriage
3. Service (inspection) hole
4. Over-Sized pulley
5. Multi-strand non-rotary non-stretchy cable
6. 4 Screw-Up rubber pads and 8 truck adapters
3. Service (inspection) hole
4. Over-Sized pulley
5. Multi-strand non-rotary non-stretchy cable
6. 4 Screw-Up rubber pads and 8 truck adapters
